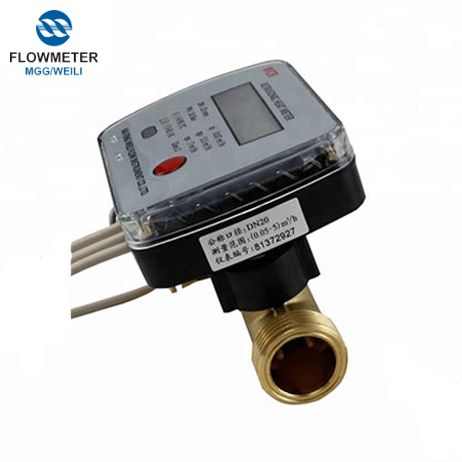

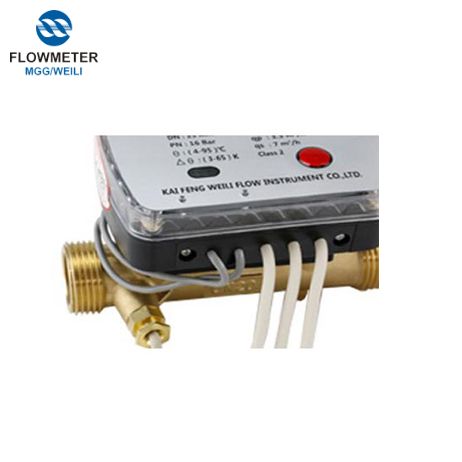

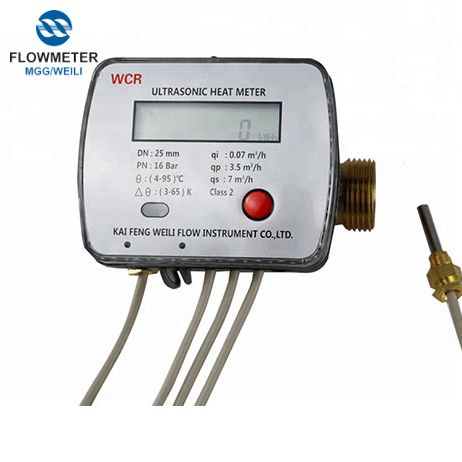

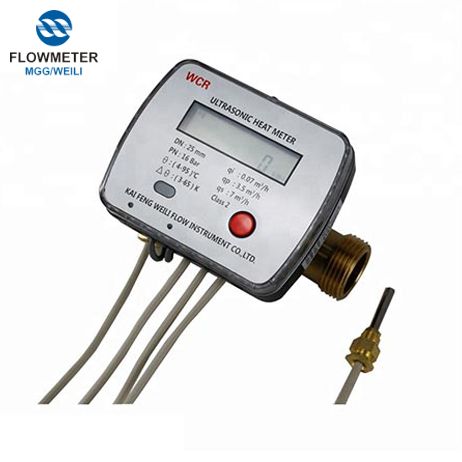

Liquid Flow Measure Device Ultrasonic Heat Meter

Liquid Flow Measure Device Ultrasonic Heat Meter

Inquire Now None

Product details

Quick Details:

Place of Origin	Henan, China (Mainland)	Brand Name	WEILI	Model Number	WCR
Product Name	Liquid flow measure device ultrasonic heat meter	Medium	WATER	Accuracy	2
Power supply	Battery Powered	Output	MBUS	Application	Household heat meter
Connection	Thread	Working pressure	1.6Mpa	Material	copper

Product Description:

The heat meter is a measuring instrument for measuring the heat released by a heating system using hot water as a heat transfer medium. The measured heat is accurately calculated by the calculator by measuring the flow rate and the inlet and outlet temperatures in the water supply pipe.

Flow Sensors
DN(mm)	QS(m^3/h)	QP(m^3/h)	QI(m^3/h)
DN15	0.03	1.5	3
DN20	0.05	2.5	5
DN25	0.07	3.5	7
DN32	0.12	6.0	12
DN40	0.20	10	20
DN50	0.60	15	30
DN80	1.60	40	80
DN100	2.40	60	120
DN125	4.00	100	200
DN150	6.00	150	300
DN200	10.0	250	500

Calculator
temperature range	4℃~95℃
Temperature difference	3K~65K
Temperature resolution	0.03℃
power supply	3.6V
Battery Life	＞6yeas
LCD	8bit

Temperature Sensor
Platinum resistance	PT1000
diameter	5mm，8mm
cable length	1.5M

Technical Parameters
Ambient temperature	5℃~55℃
Working pressure	1.6MPa
Accuracy	2.0 Level

Main Features:

1) Using advanced foreign technology, it can automatically collect flow signal, inlet water temperature, return water temperature, automatically calculate instantaneous flow, cumulative flow, temperature difference and other parameters.
2) The hot and cold (heating, cooling) type heat meter can intelligently judge the heating or cooling state according to the actual use condition and measure separately.
3) It can be connected with M-BUS and RS485 interfaces to realize data remote transmission and centralized meter reading function, which is convenient for automatic intelligent management control of residential buildings.
