Sea river measuring waste water treatment diving open channel electromagnetic flowmeter

Inquire Now None

Product details

Quick Details：

Place of Origin	Henan, China (Mainland)	Brand Name	WEILI	Model Number	MGG
Accuracy	±0.5% ~ ±1.5%	Application	Widely	Name	waste water treatment diving open channel electromagnetic flowmeter
Product Name	Orifice plate flowmeter	Power supply	DC24 V/220VAC 50HZ	measurement accuracy	±1cm(Pillar diameter 1cm)
Output	4-20mA /RS485	Medium	Sewage	Material	SS304

Product Description：

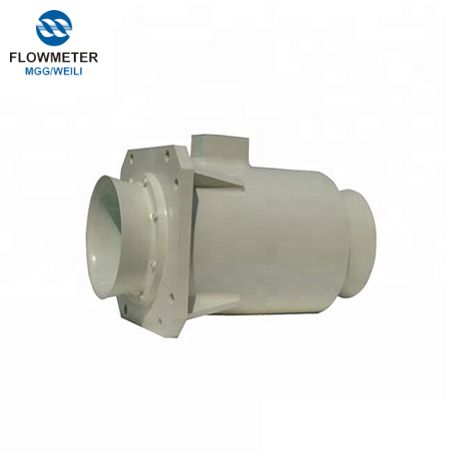

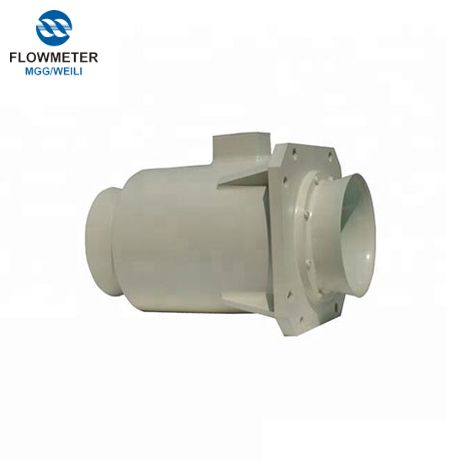

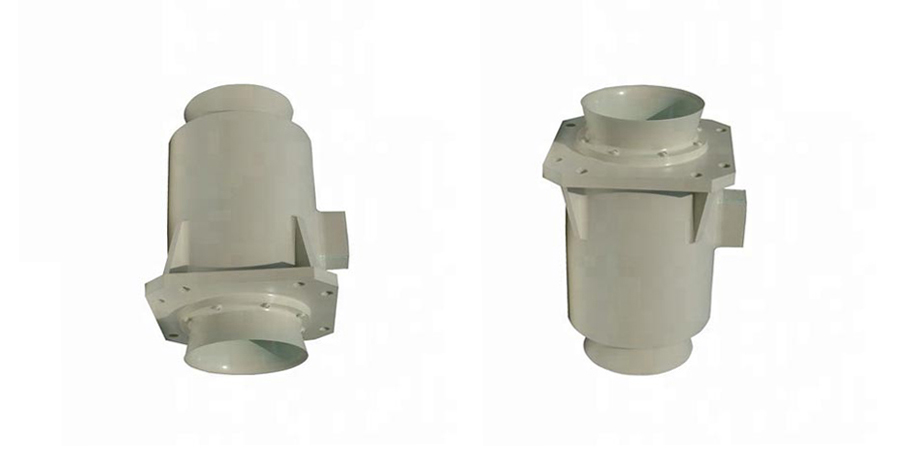

Magne W3000 PLUS Diving type electromagnetic flowmeter is mainly used for flow rate measurement in open or closed channels .This flowmeter has been widely used in departments of water supply and sewage in towns ,industrial waste water sewage ,sewage management ,farmland irrigation ,etc.

Characteristics：

1.The body is made of plastics ,resulting in light and corrision resistant structure .

2.The structure is simple and without moving parts .The flowmeter have sturdy resistance against staining,dogging or eroding if a fluid contains suspensions or adherents .

3.The sensor can also be easily installed on any gate of an exsisting water channel .The channel may be an open or closed type with retangular or circular cross section .

4.The flow signal is linear ,having a high measuring accuracy from 100% down to zero flow rate .Stable measurement can be done even when the channel is affected by the tide .

Technical Parameters：

Nominal Bore:	DN50,100,200,400,600,800mm
Measuring range	0 ~ 1m/s to 0 ~ 10m/s(Flow velocity)
Max diving depth	10m
Accuracy	±1.0%;±2.0%
Measuring Electrodes	316L Stainless steel , Harrington alloy B/C, Titanium , or special material
Medium Temperature	0℃ ~ +40℃
Output signals of sensor	0 ~ 0.2mVp ~ p to 0 ~ 2mVp ~ P
Output signals of the flowmeter	4 ~ 20mA.Dc and 0 ~ 5000Hz or 0 ~ 2000Hz
Electrical conductivity	≥5μs/cm
