AC powered low cost insertion electro magnetic flowmeter for large pipe waste water

Product details

Quick Details:


Place of OriginHenan, China (Mainland)Brand NameWEILIModel NumberMGG
Product NamePlug-in flowmeterMediumEtcAccuracy1.50%
Power supply220VAC/ 24VDCOutput4-20mA /RS485ApplicationWidely flowmeter
ConnectionFlangedProtectionIP65, IP68 is optionalMaterialPVC, ABS ,Polupropylene

AC powered low cost insertion electro magnetic flowmeter for large pipe waste water

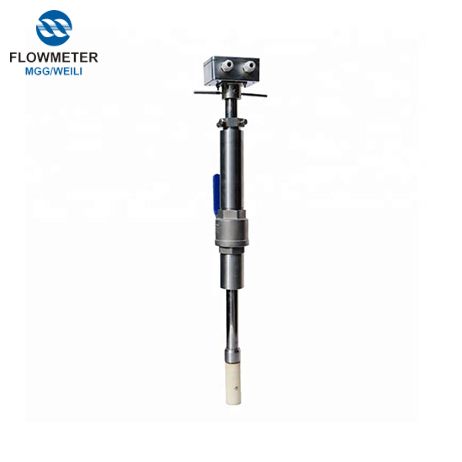

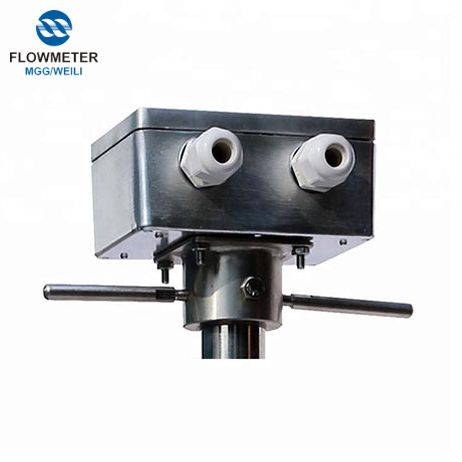

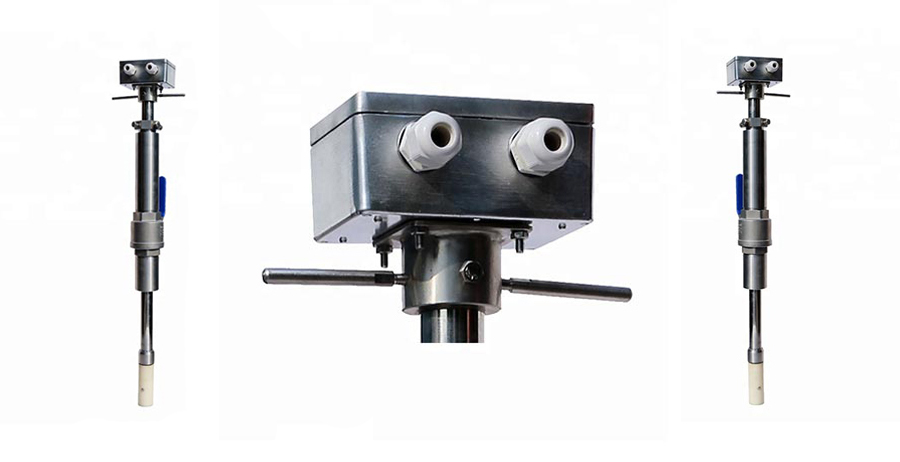

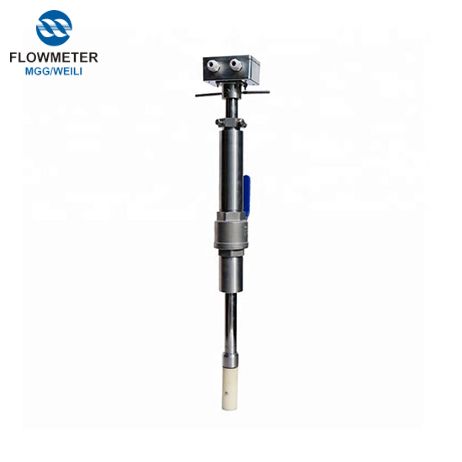

MGG Insertion type:

Magne W3000 PLUS Insertion type Electromagnetic flowmeter being based on Faraday's law of electromagnetic induction with advanced international technics is a kind of flowmeter of high intellectual and reliability. It has been widely used in the area of big-cable flowmeters with its high cost-effective.

Available SizesFour probe lengths to suit line sizes from 6"…120"
Accuracy± 1.5 % of measured value plus ± 0.5 % ofmaximum range
Maximum Flow Velocity5 m/s / 16.4 ft/s
Maximum Pressure16 Bar / 232 psi
Maximum Temperature

Compact Unit                 80°C / 176°

Remote Unit                   100°C / 212°F

Repeatability± 1.5 % of rate
Process ConnectionsANSI Flange (B16.5)



Electrode and Probe Body Materials316L Stainless Steel
Hastelloy-C22
Hastelloy-B10

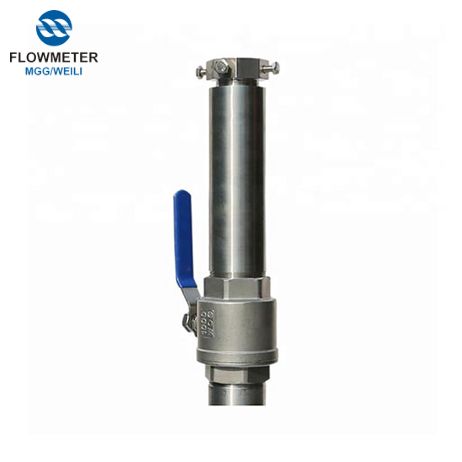

Removable ProbeHot Tap Retractor Option Available
Housing Protection ClassIP65
IP67 (Compact versions only)
IP68 (Remote Versions Only)
Remote TransmitterPipe Mount or Wall Mount
Available Power Supplies85…265VAC
16…36VDC
Transmitter Configuration OptionsFront Panel Keypad
Hand Held Infrared Programmer
Output Signals1 x Active Current Output
1 x Passive Current Output
1 x Frequency / Pulse Output
Status Outputs2 x Contact / Status Outputs for Upper and Lower Flow Limit
Digital CommunicationRS485 Modbus, HART


Main Features:

1) The wide range of the nominal bore is suitable for all the pipe size between DN300 and DN 3000.

2)With simple structure ,the flow meter is of high reliability without lining in the measuring pipe .

3)The integral grounded electrode guarantees the grouding well

4)The sensor with advanced processing technology and liquid airproof is of long natural life and of nice resistance to shaking leakage .It guarantees the instrument good precision and stability .
